VSS AC DRIVE
Emotron Vss Ac Drive
₹5,600 / Piece
Power Rating
0.5 HP
Usage
For Industrial Machinery
Input Voltage
220V
Brand
CG
Motor Power
Range-.0.37KW
Model Name/Number
VSS 23-2P5-20CNB
Country of Origin
Made in India
Protection Class
IP20
Minimum Order Quantity
1 Piece
- We are engaged in Manufacturing, Distributing and Trading a qualitative range of VSM Drive, Solar Pump Controller, Water Filled Motor Borewell Submersible Pump, VSR AC Drive, FDU Variable Frequency Drive, Human Machine Interface and many more.
VSS DRIVES
Emotron VSS Drives
₹5,950 / Piece
Power Rating
1 HP
Input Voltage
220V Single phase
Brand
CG
Motor Power
0.75 KW
Model Name/Number
VSS 23-4P2-20CNB
Payment
Cash On Delivery Available.
- EMOTRON VSS IN A MULTIPURPOSE AC DRIVES WHICH IS PACKED WITH FEATURES TO MEET APPLICATIONS REQUIREMENTS.
- VSS IS COST EFFECTIVE , EASY TO USE DRIVE FOR THE SINGLE PHASE SUPPLY SYSTEM IN CHALLENGING INDUSTRIAL ENVIRONMENTS
VSS DRIVE

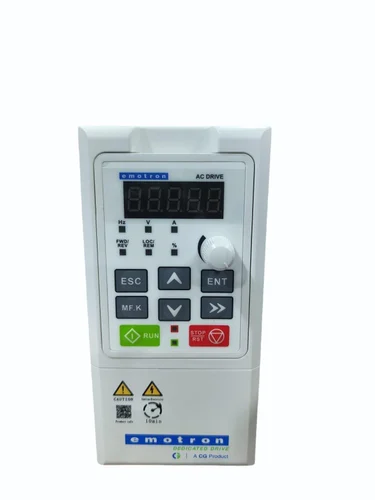

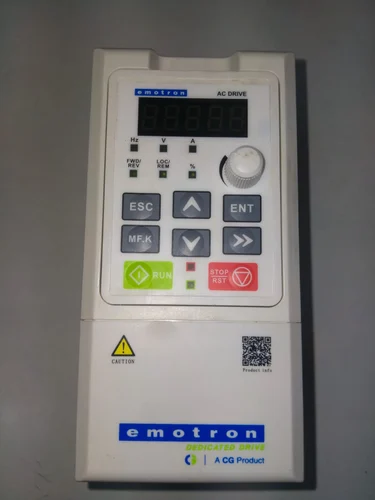

Single Phase VSS Drive
₹6,000 / Unit
Brand
Emotron
Input Voltage
220 V AC
Input Phase
Single Phase
Model Name/Number
VSS 23-7P5-20CNB
Power Range
1.5 kW
Protection Class
IP20
Storage Temperature
45 Degree Celsius
Ambient Temperature
45 Degree Celsius
Humidity
10-85% RH
Minimum Order Quantity
1 Unit
- Single Phase VSS Drive is a multipurpose AC drive, packed with features to meet application requirements. VSS is a cost-effective, easy to install and easy to use drive for the single phase supply system in a challenging industrial environment.
- VSS series meets users’ needs and runs a variety of applications such as packaging, wood working, pumps, blowers, mixers and other machineries. Available in IP20, within the 0.4-2.2 kW, Single phase 220V.
- Emotron VSS series is ideal for machineries running on a single phase supply, for better control and higher reliability.
- VSS drives have a host of features to meet the demand of a variety of applications. The sensorless vector control algorithm enables it to achieve speed control accuracy of up to 0.2%, and a starting torque of 180% at 0.25Hz. The Emotron VSS series is rated as standard for heavy duty, making it optimal for demanding applications.
- Features of VSS include programmable acceleration and deceleration curves, PID control, 16 programmable speeds, torque boost, DC brake, jog frequency, speed search, over excitation brake, torque control, separated V/f control and many more.
- This drive also has a range of readymade application macros which simplify commissioning work and reduce the need for external controllers. In addition to logic functions such as timers and comparators, Emotron VSS has multi-speed control, wobbulation control and length count functions.
VFX SERIES VFD

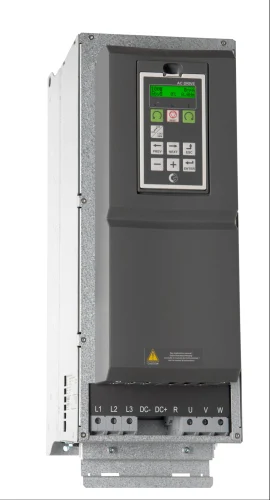

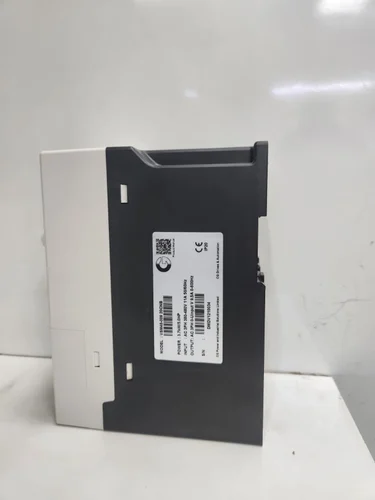

CG Emotron Drive VFX Series Rubber Machinery VFD
Power
3 HP
Usage
for Industrial Machinery
Input Phase
1 Phase
Brand
CG Emotron
Payment
Cash on delivery Available
- CG Emotron Drive VFX Series Rubber Machinery VFD
- We are engaged in offering to our clients. Our range of all products is widely appreciated by our clients.
VSS SERIES VFD
CG Emotron Drive VSS Series Pumps Fans And Compressors VFD 15 Hp To 400 Hp
Power
3 HP
Input Phase
1 Phase
Output Power
3 Phase
Brand
CG Emotron
Model Name/Number
VSS 23-9P5-20CNB
- CG Emotron Drive VSS Series Pumps Fans And Compressors VFD 0.5 Hp To 3 Hp
- We are engaged in offering to our clients. Our range of all products is widely appreciated by our clients.
